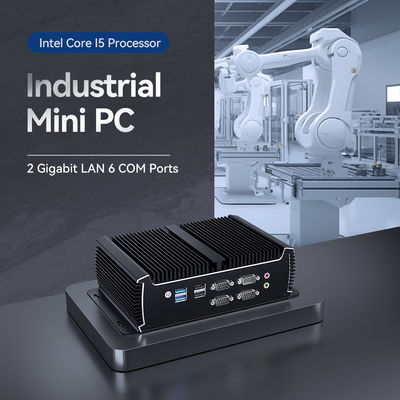

Fanless Aluminum Industrial PC with Intel Core i5-4200U Compact Embedded Computer for Harsh Environments

Markenbezeichnung:	HelorPC
MOQ:	1

Einzelheiten

Produkt-Beschreibung

Einzelheiten

Herkunftsort:

Guangdong, China

CPU -Modell:

Intel Core I5-4200u

CPU-Cache:

CPU -Geschwindigkeit:

bis zu 2,30 GHz

CPU -Kerne:

2 Kern 4 Threads

CPU TDP:

15W

GPU-Modell:

Intel HD Grafik 4400

VGA-Auflösung:

1920* 1080@60Hz

Auflösung HD:

4096*2304@24Hz

RAM -Typ:

DDR3L 1333/1600 MHz

RAM Slots:

2*DDR3L SODIMM

Max Ram:

16 GB

Speicherplätze:

1x mSATA + 1x 2,5" SATA

Lan Ports:

2x 10/100/1000 Mbit/s

USB -Anschlüsse:

3x USB2.0, 4x USB3.0

Serielle Anschlüsse:

4x RS232, 2x RS232/RS422/RS485

Hervorheben:

Intel Core i5-4200U Industrial PC

Aluminum Chassis Embedded Computer

Compact Size Mini PC

Produkt-Beschreibung

Fanless Aluminum Small Industrial Computer Intel Core I5 4200U 2 Network Card RJ45 LAN 6 RS232 RS422 RS485 Embedded Mini PC

Product Overview

Technical Specifications

Processor	Intel Core i5 4200U Processor, 3M Cache, up to 2.30 GHz, 2 Core 4 threads, TDP:15W

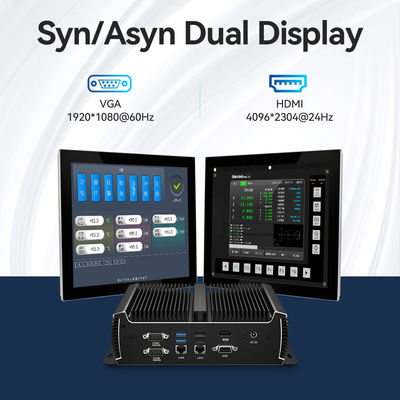

Display	GPU: Intel HD Graphics 4400 VGA: Maximum resolution 19201080@60Hz HD: Maximum resolution 40962304@24Hz Dual display: VGA + HD, Support for Synchronous or Asynchronous Display
Memory	2GB/4GB/8GB DDR3L 1333/1600MHz 1.35V 2*DDR3L SODIMM slot Maximum capacity: 16G
Hard Disk	SSD: 1Full Height mSATA socket, 60GB/120GB/240GB/500GB mSATA SSD HDD: 1SATA. Connect by SATA data/power cable
Support OS	Official Win8/Win10 \| ubuntu/LINUX/CENTOS

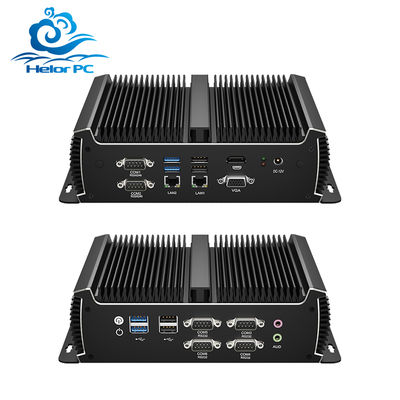

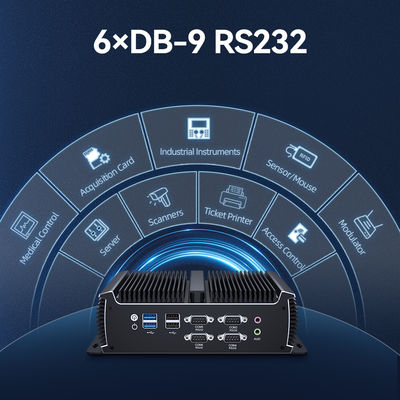

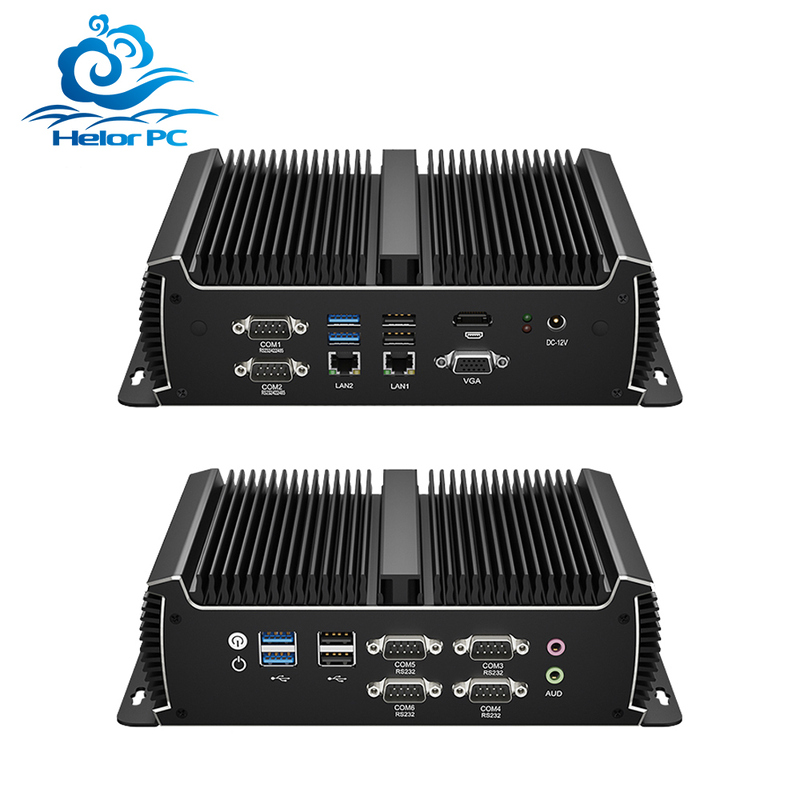

Ports	3xUSB2.0 4xUSB3.0 1xVGA 1xHD 2xLAN 4x RS232 COM 2x RS232/RS422/RS485 COM 1xMIC 1xSPK
LAN	Intel I225V 2.5G NIC Ethernet, support wake on lan
Audio	Main system: Adopt Realtek ALC662 audio control chip, support dual channel, stereo, Line out
Extension	1×Mini PCIE support WIFI/BT module 1×Mini PCIE support 3G/4G/WIFI module
Power Requirement	DC 12V 6A

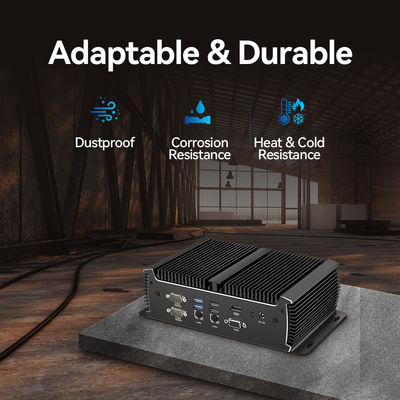

Working Environment	Operating Temperature -20℃-65℃ Storage Temperature -30℃-70℃ Relative Humidity 5%~95% (non-condensing)
Dimension	240mm150mm69mm
Package Contents	1 x Mini PC 1 x User manual 1 x Power Cord 1 x SATA data and power cable

Important Notice: The price shown is for the no RAM, no SSD, no WiFi mini PC configuration. If you need RAM/SSD/WiFi, please contact us.

Company Profile

Shenzhen Helor Cloud Computer Co,. Ltd (HLY), located in Shenzhen, Guangdong and specialized in mini computer since 2013, has our own professional motherboard manufacturer. We've developed more than 50 kinds of products, applied in different fields for AI, office working, education, entertainment, advertising, transport, military, industrial, etc.

Our mini PCs have sold in more than 60 countries and regions, with annual sales exceeding one million units. HLY carries the line of over 20 manufacturers of computer components, communications products and specialized electronics for automation control.

We have more than 100 employees. Our experienced technical group, reliable sales department and responsible production team constitute the backbone of our enterprise. Our well-selected components and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.

Packaging & Shipping

Power Adapter

We have multiple specifications of power supplies, which are selected by default based on your shipping address. If you have special demands, please contact us.

Payment Methods

We support L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.

Packaging

We carefully wrap the mini PC and parts with a waterproof bag, then fix it in the inner carton box with a foam board. The inner box is placed into the outer box, which is then sealed with tape.

Shipping Methods

Shipping by DHL, FedEx, UPS, Aramex, post and Alibaba, and negotiation (choose as you prefer).

Frequently Asked Questions

1. How about the warranty?

The first year we provide free repair service, the second year and the third year, free repair but we will charge for the parts that need to change.

2. Can I print my logo on your mini PC?

Yes, please provide your logo file, and we will confirm the design effect to you before production. We also do OEM/ODM.

3. What is the MOQ?

We can sell one sample for your test.

4. How long will the package be ready after I buy the mini PC?

It takes about three days for inspection and assembly. Generally, 10 units can be shipped in about 3 days, and 50 units can be shipped in about 8 days. For more information please check with us.

5. Are your mini PCs in stock?

Yes, most of our models are in stock. You can confirm the inventory with us before placing your order.
